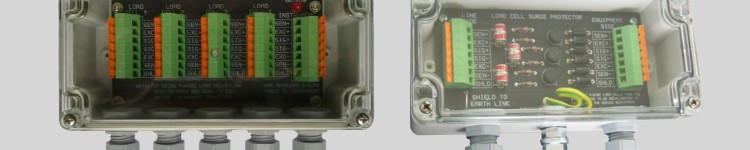

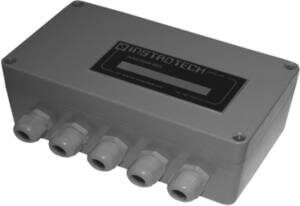

Models JB3 and JB4 are junction boxes used for field wiring multiple load cells in parallel to one common weighing indicator or transmitter. The housing is a rugged IP65 polycarbonate with integral cable glands and internal screw terminals for 4-wire or 6-wire load cells plus their screens.

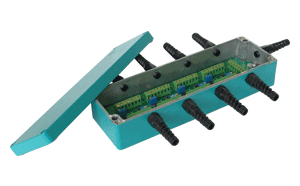

Model JB06 junction boxes are used for wiring and trimming multiple load cells in parallel to one common amplifier, indicator or transmitter. The housings are IP65 plastic coated cast aluminium with cable glands, screw terminals for 4-wire or 6-wire load cells and screens, and multiturn trimming potentiometers for sensitivity adjustment.
Features:
- Versions for 2, 3, 4, 6 or 8 load cells
- Suits 4-wire or 6-wire load cells
- Plastic coated cast aluminium IP65
- Surge and lightning protected
- Potentiometers for sensitivity trimming
- Operating temperature: -40ºC to +85ºC

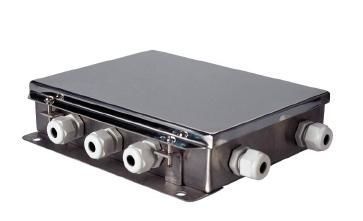

Models JB-SS304-4 and -6 are 304 stainless steel load cell summing junction boxes used for field wiring multiple load cells in parallel to one common weighing indicator or transmitter. The housing is IP65 with integral cable glands and internal screw terminals for 4-wire load cells and screens.
Features:
- Versions for 4 or 6 load cells
- Suits 4-wire load cells
- Stainless steel housing
- IP65 protection
- Potentiometers for sensitivity trimming
- Operating temperature: -40ºC to +85ºC
