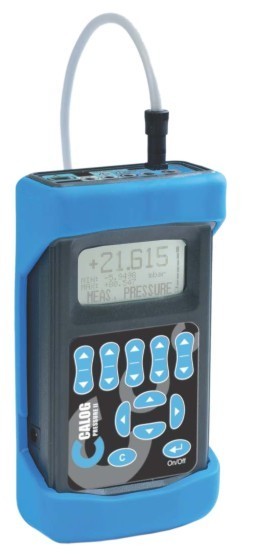

Pressure Calibrator Calog-Pressure II
CALOG-Pressure II is a handheld calibrator with plug-on pressure sensors for any range up to 700 bar. This instrument also has the functions to install and maintain all powered and non-powered milliamp loops. It is supplied with one plug-on pressure sensor with optional additional sensors available for the other pressure ranges specified below. As a small, rugged unit with rubber protective boot, high precision and Li-ion long-lasting rechargeable battery pack, CALOG-Pressure II is ideal for industrial field calibration. Data may be logged to the removable SD card in CSV format, with user-selectable data fields and timebase. Logged data may also be retrieved via the USB port. CALOG calibrators are made by Instrotech and comply with EMC and EMI and Low Voltage directives.
Features:
  • Small, rugged, handheld with a protective rubber cover

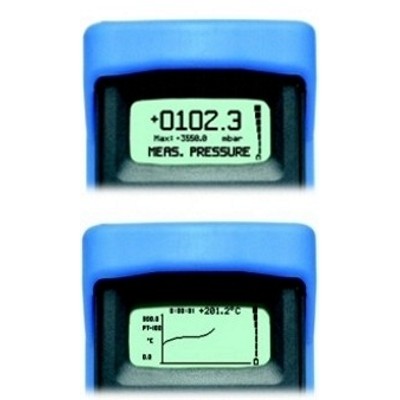

  • Graphic display of measured value, percent and battery status
  • Measure, source and simulate 0-24 mA with 0.01% accuracy and 1 microamp resolution
  • Measure 32V with 0.005% accuracy and 1mV resolution
  • Continuity test function
  • Trend logging with programmable timebase
  • Displays values in mA and % or % and mA
  • Measure complete vacuum to 1000 bar pressure
  • Measures in bar, mbar, kPa, MPa, psi, m of H²O, in of H²O, ft of H²O, mm of Hg (torr), cm of Hg, in of Hg, kg per cm² and atmospheres
  • Contains a handy pressure conversion calculator
  • Programmable auto-off, restart at last setting and selectable display resolution
  • Data logging to removable SD card with time and date
  • USB port for access to logged data
  • Lithium-ion rechargeable battery pack with 'fuel gauge' chip
  • One pressure sensor included, more are optional
  • Carry case, battery charger, SD card, test leads and factory calibration certificate
  • 2 year guarantee, excluding batteries
Specifications:
Calog pressure calibrator functions
