Calog-Loop II mA loop calibrator

Loop Calibrator
Calog-Loop II

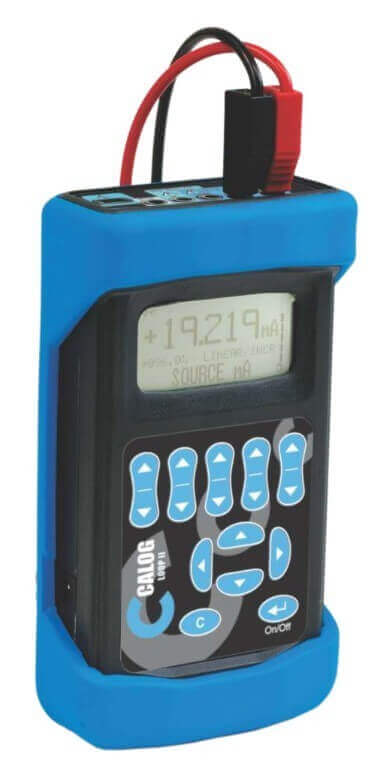

CALOG-Loop II is a handheld calibrator with functions to install and maintain all powered and non-powered milliamp loops. Its small size, rugged design, rubber protective boot, high precision and Li-ion long-lasting rechargeable battery pack makes it ideal for industrial field calibration.

Data may be logged to the removable SD card in CSV format, with user-selectable data fields and timebase. Logged data may also be retrieved via the USB port.

Recalibration facilities are available from Instrotech or an approved laboratory via the factory supplied calibration access code. CALOG calibrators comply with EMC and EMI and Low Voltage directives.

All CALOG calibrators are supplied in a case with test leads, mains charger and non-slip rubber boot for the UL94V-O flame-retardant ABS plastic IP54 dust and splash proof housing.

Features:

    Small, rugged, handheld with a protective rubber cover

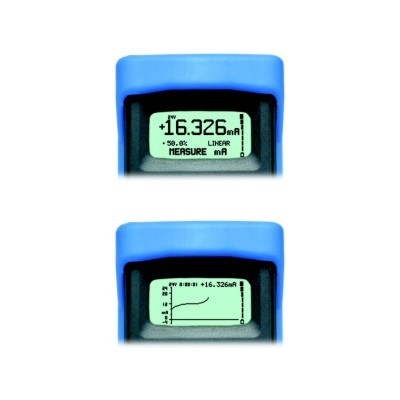

    Graphic display of measured value, percent and battery status
    Measure, source and simulate 0-24 mA with 0.01% accuracy and 1 microamp resolution
    Linear, Flow and Valve stroking functions
    Increment, Step, Auto Step and Ramp modes
    Measure 32V with 0.005% accuracy and 1mV resolution
    Continuity test function
    Trend logging with programmable timebase
    Data logging to removable SD card with time and date
    USB port for access to logged data
    Displays values in mA and % or % and mA
    Programmable auto-off and selectable display resolution
    Lithium-ion rechargeable battery pack with 'fuel gauge' chip
    Carry case, battery charger, SD card, test leads and factory calibration certificate
    2 year material and workmanship guarantee (excludes batteries)
    Battery runtime : approximately 8 hours
    Battery charge Time : 5 Hours
    Battery type : Lithium Ion 3.7V 2200mAh
    Vehicle Charger : 12Vdc at 1A with a power outlet plug
    Charging Input : 10 to 15Vdc
    Mains Charger : 100 to 240Vac, 0.5A, 50/60Hz, 12Vdc at 1.5A output
    Operating Humidity : 0 to 85% (non-condensing)
    Operating Temperature : 0°C to 50°C
    Storage Temperature : -40°C to 60°C (including battery)
    Size : 149 x 34 x 77mm without rubber boot, 155 x 43 x 85mm with rubber boot
    Weight : approximately 340g
    Protection : IP54 Dust and Splash proof
    Protection : UL94V-0 Flame retardant ABS plastic

Calog-Loop II calibrator Data Sheet

Calog loop calibrator functions

Loop Calibrator Calog-Loop II
