Compression Load Cells
Stainless Canister Load CellModel BM14A
- Multi-column design
- Low profile compression load cell
- Fully welded stainless steel
- Hermetically sealed to IP68
- Glass-to-metal cable-entry
- Suitable for harsh environments
- For weighbridges, silos, hoppers and process weighing
- Lightning protection to 10KV
- Current calibrated trimmed output (SC)
- 3,000 division C3 accuracy classes
- 10, 25, 40, 60 and 100t versions
- 25K, 50K, 100K and 200K lb imperial versions
Stainless Canister Load CellModel BM14G
- Single column design
- Compression load cell
- Anti-rotation built-in
- Fully welded stainless steel
- Hermetically sealed to IP68
- Suitable for harsh environments
- For weighbridges, platforms, test rigs and process weighing
- Lightning protection to 10KV
- Current calibrated trimmed output (SC)
- 3,000 division C3 accuracy class
- 10, 20, 30, 40 and 50t versions

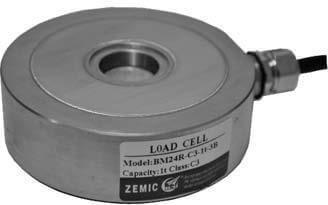

- PANCAKE LOAD CELL
- Low-profile Stainless Load Cell
- Model BM24R
- Ring type 'pancake' load cell
- C3, C4 and C5 accuracy classes
- Low profile compression load cell
- Fully welded stainless steel
- Suitable for harsh environments
- Hermetically sealed to IP66 / IP68
- Integrated overload protection up to 13t
- For belt weighers, scales, hoppers and testing
- Integral overload stop built-in in low capacities
- Current calibrated trimmed output
- Optional ATEX intrinsic safety versions available
- 0.06, 0.13, 0.25, 0.28, 0.5, 1, 2, 3.5, 5, 10, 13, 28 and 60t versions

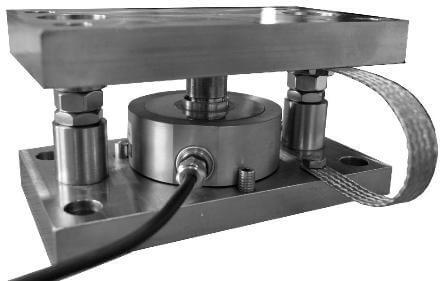

Self-aligning load cell mountModel BM-24-401/402/403
BM-24 load cell mounts provide a low-profile weighing assembly for process control, batch weighing, silos, hoppers and belt weighers. Full stainless steel construction and rocker-pin load induction design make for long life and reliability in harsh environments. The mount design tolerates controlled movement in all directions and does not need check-rods unless there is major load movement. The jacking facility allows for load cells to be fitted and removed after installation of these mount sets.
- Rocker-pin load introduction
- AISI 304 stainless steel construction
- Horizontal movement control and lift-off protection
- Easy load cell placement after installation of mount
BM-24 load cell mounts provide a low-profile weighing assembly for process control, batch weighing, silos, hoppers and belt weighers. Full stainless steel construction and rocker-pin load induction design make for long life and reliability in harsh environments. The mount design tolerates controlled movement in all directions and does not need check-rods unless there is major load movement. The jacking facility allows for load cells to be fitted and removed after installation of these mount sets.

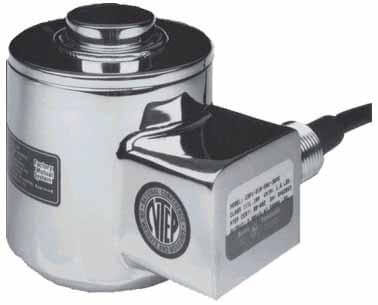

Stainless Canister Load CellModel CSP or CP
- Multi-column design
- Low profile compression load cell
- Fully welded stainless steel
- Hermetically sealed to IP68
- Suitable for harsh environments
- Weighbridges, silos, hoppers and process weighing
- 2.00mV/V (CSP) or 1.75mV/V (CP)
- D3 or B10 accuracy classes
- 10K to 300K lb versions

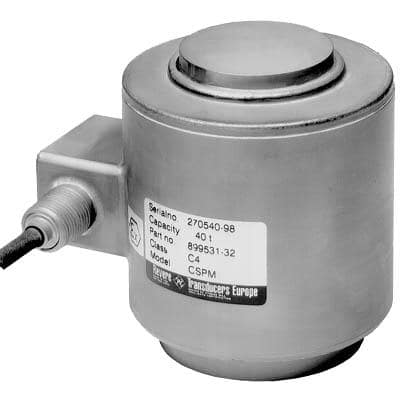

- Stainless Canister Load Cell
- Model CSP-M
- Multi-column design
- Low profile compression load cell
- Fully welded stainless steel
- Hermetically sealed to IP66 / IP68
- Glass-to-metal cable-entry
- Suitable for harsh environments
- For weighbridges, silos, hoppers and process weighing
- Surge protection tubes built-in
- Current calibrated trimmed output (SC)
- CC, C3, C4 or NTEP IIIL accuracy classes
- Optional ATEX intrinsic safety versions available
- 10, 25, 40, 60 and 100t versions (Emax)

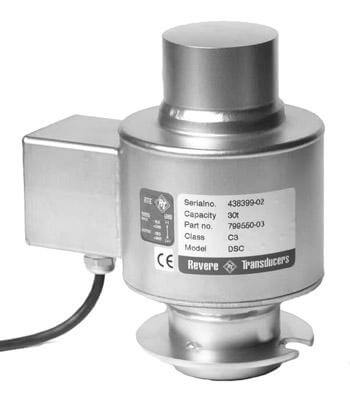

Digital Canister Load CellModel DSC
- Single column design
- Digital compression load cell
- Fully welded stainless steel
- Hermetically sealed to IP66 / IP68
- Glass-to-metal cable-entry
- Suitable for harsh environments
- For weighbridges, silos, hoppers and process weighing
- Lightning protection built-in
- Asynchronous serial output
- CC, C3 or C4 accuracy classes
- 30, 40, and 50t versions (Emax)
- SPOKE LOAD CELL
- Low-profile Load Cell
- Model H2F
- Spoke type design
- Nickel plated alloy steel
- Hermetically sealed to IP67
- C1 and C2 accuracy classes
- Suitable for harsh environments
- Low profile compression load cell
- For truck scales, hoppers and testing
- Optional ATEX intrinsic safety versions available
- 1, 2, 3, 5, 10, 15, 20, 30 and 50t capacity versions
- Self-aligning Load Cell Mount
- Model HM-2-401
- Rocker-pin load introduction
- Nickel-plated alloy-steel construction
- Horizontal movement control and lift-off protection
- Easy load cell placement after installation of mount
- Low-profile weighing assembly with jacking facility
- 150% of FS maximum ultimate overload
- 50% of FS maximum against lift-off forces
Coated Canister Load CellModel KSR
- Single column design
- Low profile compression load cell
- Coated steel housing
- Sealed to IP66
- Suitable for high capacity weighing
- For tanks, silos, hoppers and process weighing
- Self-aligning mounts available for vessels
- Current calibrated trimmed output
- 6, 13, 28, 60, 130 and 280t versions (Emax)

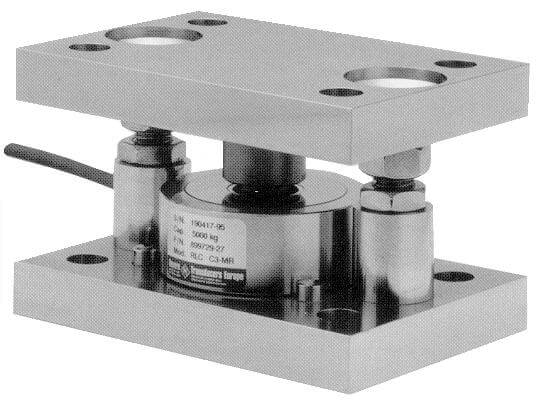

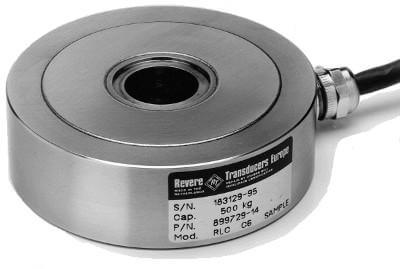

- Ring-torsion Stainless Load Cell
- Model RLC
- Unique Ring Torsion design
- Low profile compression load cell
- Fully welded stainless steel
- Hermetically sealed to IP66 / IP68
- Glass-to-metal cable-entry
- Suitable for harsh environments
- For belt weighers, scales, hoppers and testing
- Integral overload stop built-in in low capacities
- Current calibrated trimmed output
- D3, C3, C6 or NTEP IIIL accuracy classes
- Optional ATEX intrinsic safety versions available
- 0.25, 0.5, 1, 2, 3.5, 5 and 10t low capacity versions
- 28 and 60t high capacity versions (Emax)

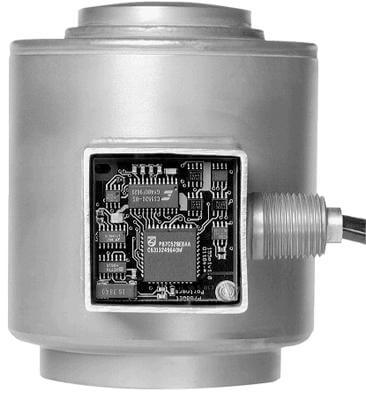

Coated Canister Load CellModel SCC
- Multi-column design
- Digital compression load cell
- Fully welded stainless steel
- Hermetically sealed to IP66 / IP68
- Glass-to-metal cable-entry
- Suitable for harsh environments
- For weighbridges, silos and hoppers
- Lightning protection built-in
- Asynchronous serial output
- CC, C3 or C4 accuracy classes
- 10, 24, 40, 60, 100t versions (Emax)
