Double-ended Beam Load Cells
- Alloy or Stainless Steel Beam Load Cell
- Model H9C or B9C
- Double ended beam load cell
- Low profile, sealed to IP67
- OIML R60 C3, NTEP N10, N3 accuracy classes
- For platforms, weigh bridges, silos and hoppers
- Alloy steel (H9C) or stainless steel (B9C) versions
- Optional tank or vessel mounting assembly available
- Capacities 5 Klb to 250 Klb

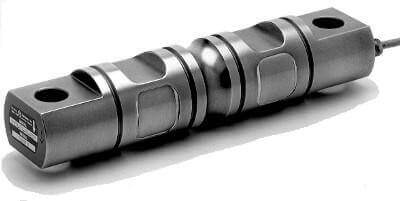

Nickel or Stainless Steel Beam Load CellModel 5103 or 9103
- Double ended beam load cell
- Low profile, sealed to IP67
- Nickel plated (5103) or Stainless Steel (9103) versions

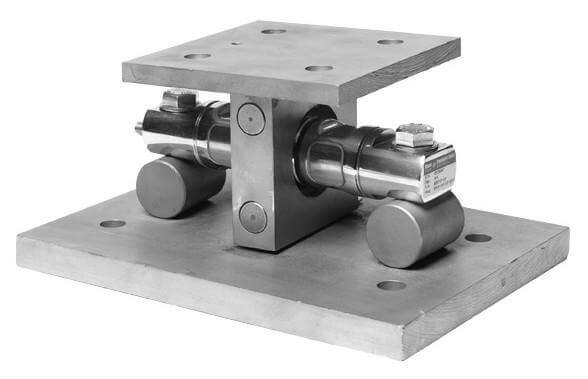

- Optional tank or vessel mounting hardware
- For platform scales, weigh bridges, silos and hoppers
- D3, OIML R60 C3 and NTEP versions
- 5 Klb to 250 Klb capacities

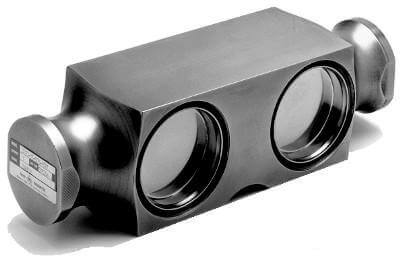

Nickel Plated Beam Load CellModel 5223
- Double link beam load cell
- Low profile, sealed to IP67
- Self-checking and self-centering
- Nickel plated element material
- For truck and railroad scales, tanks, silos and hoppers
- D3, OIML R60 C3 and NTEPIIIL versions
- 50, 65 and 100 Klb capacities
