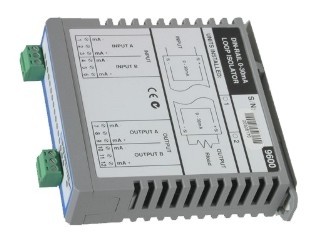

Model 9600-B1
is a space-saving 92 x 92 x 26 mm DIN rail mount loop powered single 0-30mA loop isolator designed specifically to eliminate ground loop measurement problems.
This unit generates a transformer-isolated output current to flow in a load, which is proportional to the input current. Galvanic isolation is in excess of 1000V between input and output and requires no additional power supply. Model 9600-B1 will provide 1 isolated output while Model 9600-B2 will supply 2 isolated outputs from 2 different inputs or 1 common input.
This unit generates a transformer-isolated output current to flow in a load, which is proportional to the input current. Galvanic isolation is in excess of 1000V between input and output and requires no additional power supply. Model 9600-B1 will provide 1 isolated output while Model 9600-B2 will supply 2 isolated outputs from 2 different inputs or 1 common input.
- Features:
- DIN rail mount 92 x 92 x 26 mm enclosure
- UL 94 V-0 flame retardant plastic
- Low cost - high performance design
- Loop powered - no additional power supply required
- 0 - 30mA input current
- Galvanic isolation between input and output >1000V
- Less than 0.25% transmission error and linearity error
- 2 year guarantee
Model 9600-B2
is a space-saving 92 x 92 x 26 mm DIN rail mount loop powered dual 0-30mA loop isolator designed specifically to eliminate ground loop measurement problems.
This unit generates a transformer-isolated output current to flow in a load, which is proportional to the input current. Galvanic isolation is in excess of 1000V between input and output and requires no additional power supply. Model 9600-B2 will provide 2 isolated outputs from 2 different inputs, or split 1 input into 2 isolated outputs.
This unit generates a transformer-isolated output current to flow in a load, which is proportional to the input current. Galvanic isolation is in excess of 1000V between input and output and requires no additional power supply. Model 9600-B2 will provide 2 isolated outputs from 2 different inputs, or split 1 input into 2 isolated outputs.
- Features:
- DIN rail mount 92 x 92 x 26 mm enclosure
- UL 94 V-0 flame retardant plastic
- Low cost - high performance design
- Loop powered - no additional power supply required
- 0 - 30mA input current
- Galvanic isolation between input and output >1000V
- Less than 0.25% transmission error and linearity error
- 2 loop isolators in the same enclosure
- 2 year guarantee

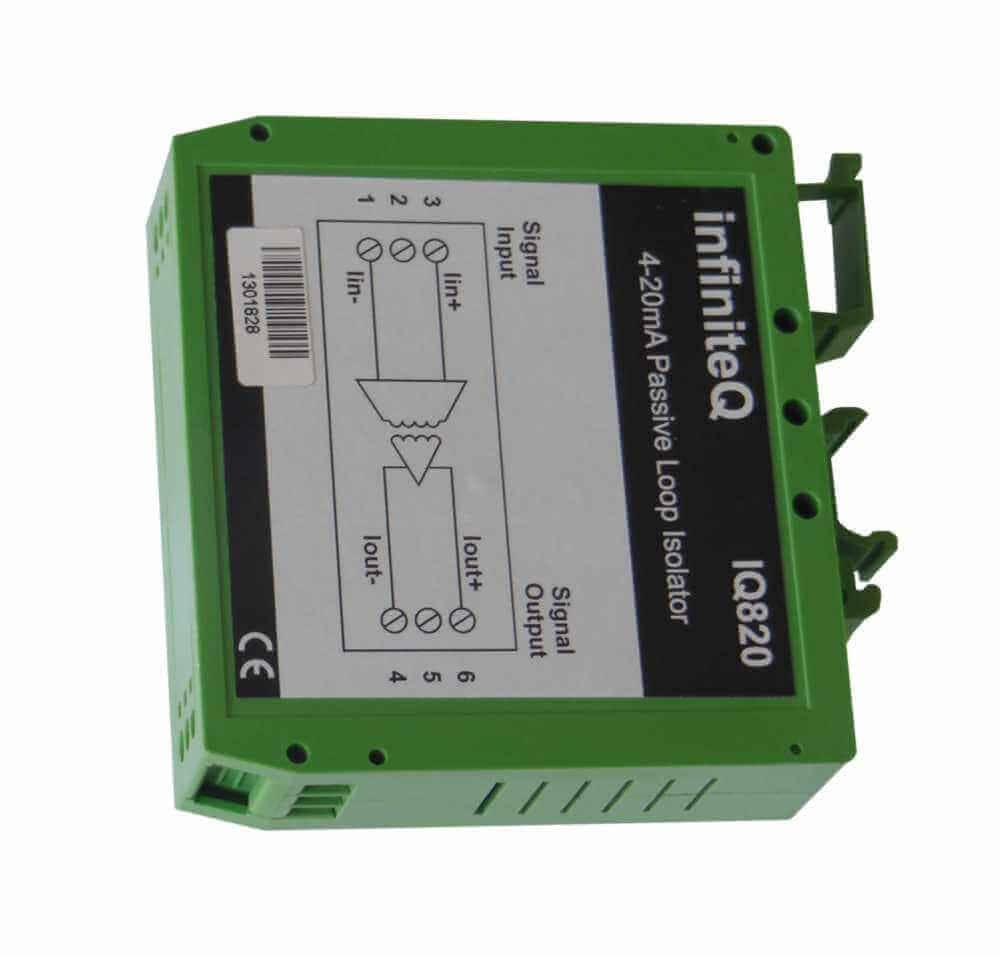

Model IQ820 is a space-saving 80 x 75 x 25 mm rail mount loop powered isolator to eliminate ground loop measurement problems.
This passive unit generates an isolated output current to flow into a 300 ohm maximum load from a 4-20mA input.
Galvanic isolation is in excess of 3000V between input and output and requires no additional power supply.
This passive unit generates an isolated output current to flow into a 300 ohm maximum load from a 4-20mA input.
Galvanic isolation is in excess of 3000V between input and output and requires no additional power supply.
- Features:
- Rail mount 80 x 75 x 25 mm enclosure
- Green nylon housing
- Low cost - high performance design
- Loop powered - no additional power supply required
- 4-20mA input current
- Galvanic isolation between input and output >3000V
- Less than 0.1% transmission and linearity errors
- 1 year guarantee
