Indicators for Weighing
STRAIN GAUGE DISPLAY
Model 4004 is a 4 digit (-1999 to 9999) LED Load Cell Indicator designed for mV inputs from load cells, strain gauges and strain gauge pressure transmitters. The stable bridge excitation voltage includes sense feedback to compensate for line variations. The precision measuring front-end circuit ensures high accuracy and stability. A digital filtering feature allows for stable displays in noisy systems. Options include programmable analog output, alarm setpoints up to 4 relays, peak or valley hold, RS232 or RS485 communications, and many more.
A feature of this programmable indicator / controller is the calibration method. The instrument may be pre-calibrated without load cell connections for zero and full scale values, and then on-site calibration may be done for deadweight offset and span calibration (single point test weight trim). This instrument meets EMC and EMI and Low Voltage directives.
Model 4004 is a 4 digit (-1999 to 9999) LED Load Cell Indicator designed for mV inputs from load cells, strain gauges and strain gauge pressure transmitters. The stable bridge excitation voltage includes sense feedback to compensate for line variations. The precision measuring front-end circuit ensures high accuracy and stability. A digital filtering feature allows for stable displays in noisy systems. Options include programmable analog output, alarm setpoints up to 4 relays, peak or valley hold, RS232 or RS485 communications, and many more.
A feature of this programmable indicator / controller is the calibration method. The instrument may be pre-calibrated without load cell connections for zero and full scale values, and then on-site calibration may be done for deadweight offset and span calibration (single point test weight trim). This instrument meets EMC and EMI and Low Voltage directives.
- Features:
- DIN 48 x 96 enclosure
- -1999 to 9999 counts
- Front keypad programmable
- Simple on-site calibration for deadweight and single point span calibration
- 14.2 mm height bright red LED display (optional green)
- 4-wire bipolar excitation with sense
- Suitable for 1 mV/V, 2 mV/V, 3 mV/V and 10 mV/V bridges
- Low cost - high performance design
- Auto tare / auto zero function standard
- Analog output option with programmable zero and span
- RS232 and RS485 bus communication option
LED LOAD CELL INDICATOR
Model 5004 is a 5½ digit (-199999 to 199999) LED Load Cell Indicator designed for mV inputs from load cells, strain gauges and strain gauge pressure transmitters. The stable bridge excitation voltage includes sense feedback to compensate for line variations. The precision measuring front-end circuit ensures high accuracy and stability. Digital filtering and programmable display increment allow for steady high count readings. Options include programmable analog output, alarm setpoints with up to 4 relays, peak or valley hold, serial communications, and many more.
A feature of this programmable indicator / controller is the calibration method. The instrument may be pre-calibrated without load cell connections for zero and full scale values, and then on-site calibration may be done for deadweight offset and span calibration (single point test weight trim). This instrument meets EMC and EMI and Low Voltage directives.
Model 5004 is a 5½ digit (-199999 to 199999) LED Load Cell Indicator designed for mV inputs from load cells, strain gauges and strain gauge pressure transmitters. The stable bridge excitation voltage includes sense feedback to compensate for line variations. The precision measuring front-end circuit ensures high accuracy and stability. Digital filtering and programmable display increment allow for steady high count readings. Options include programmable analog output, alarm setpoints with up to 4 relays, peak or valley hold, serial communications, and many more.
A feature of this programmable indicator / controller is the calibration method. The instrument may be pre-calibrated without load cell connections for zero and full scale values, and then on-site calibration may be done for deadweight offset and span calibration (single point test weight trim). This instrument meets EMC and EMI and Low Voltage directives.
- Features:
- DIN 48 x 96 enclosure
- -199999 to 199999 counts
- Front keypad programmable
- Simple on-site calibration for deadweight and single point span calibration
- 14.2 mm height bright red LED display (optional green)
- 4-wire bipolar excitation with sense
- Suitable for 1 mV/V, 2 mV/V, 3 mV/V and 10 mV/V bridges
- Low cost - high performance design
- Auto tare / auto zero function standard
- Analog output option with programmable zero and span
- RS232 and RS485 bus communication option
LOAD CELL DISPLAY AND
TRANSMITTER
Model 6004LC is a programmable field-mount isolated indicating load cell transmitter. This instrument incorporates a 60MHz 32-bit ARM7 micro-controller, including a real-time clock, data-logging, SD card slot, USB connectivity and a firmware upgrade boot-loader function.
The alphanumeric keypad allows users to enter tag numbers, calibration date, technician's name, and a host of other options. Relays may be configured as on/off, annunciators, fault or pulse counting outputs, with hysteresis and time delays. The 4 function buttons may be configured to toggle displays, to tare, or to change or accept alarms.
This unit incorporates PI control to allow the output to be used directly for load cell control or flow rate control. A special feature is the simulator, which allows analogue output and relay control to be simulated during system commissioning. A 15-point lineariser, min/max display hold, preset tare and auto-zero maintenance are all user selectable and programmable. The many functions, digital inputs and optional methods of setup are fully explained in the comprehensive operating manual.
Model 6004LC is a programmable field-mount isolated indicating load cell transmitter. This instrument incorporates a 60MHz 32-bit ARM7 micro-controller, including a real-time clock, data-logging, SD card slot, USB connectivity and a firmware upgrade boot-loader function.
The alphanumeric keypad allows users to enter tag numbers, calibration date, technician's name, and a host of other options. Relays may be configured as on/off, annunciators, fault or pulse counting outputs, with hysteresis and time delays. The 4 function buttons may be configured to toggle displays, to tare, or to change or accept alarms.
This unit incorporates PI control to allow the output to be used directly for load cell control or flow rate control. A special feature is the simulator, which allows analogue output and relay control to be simulated during system commissioning. A 15-point lineariser, min/max display hold, preset tare and auto-zero maintenance are all user selectable and programmable. The many functions, digital inputs and optional methods of setup are fully explained in the comprehensive operating manual.
- Features:
- Rugged and compact IP65 / NEMA 4 / UL Type 4 housing
- Fully programmable from the front keypad
- 10, 5 or 3.3V load cell excitation with sense feedback
- 6-digit main display with user-selectable function
- 20mm clear high-bright red LED digits
- LCD backlit screen with 4 lines of user-selectable data
- 4 user-selectable short-cut function keys
- Isolated programmable analogue output as standard
- PI control and 15-point lineariser as standard
- USB port included as standard
- 6 user-selectable digital inputs included as standard
- Real-time clock with date included as standard
- SD card slot for data-logging and firmware upgrades
- 90-260V AC/DC or 10-30V DC auxiliary power supply
- Optional 2, 4 or 6 change-over relay outputs
- Optional RS232, RS485, USB or Ethernet interface
- Optional GPS for vehicle-mounted applications
- .. more 6004 Series Weighing Amplifiers ..
- Model 6004BW
- Complete field-mount IP65 Belt Weigher
- Model 6004MF
- Multi-function IP65 Weight Transmitters:
- Bag filler
- Belt weigher
- Axle weigher
- Dynamometer
- Batch weigher
- Load cell transmitter
- Throughput weigher
- Loss-in-weight feeder
- .. more 6004 Series Weighing Amplifiers ..
- Model 6004BW
- Complete field-mount IP65 Belt Weigher
- Model 6004LC
- Load cell IP65 indicator transmitter
MULTI-FUNCTION WEIGHT AMPLIFIER
Model 6004MF is a unique multi-function weighing transmitter and indicator. The operating mode is user-selectable for a variety of weighing, packing and materials handling applications. This instrument incorporates the latest 60MHz 32-bit ARM7 micro-controller to handle the different application programs and includes an SD card firmware boot-loader upgrade function.
Model 6004MF is a unique multi-function weighing transmitter and indicator. The operating mode is user-selectable for a variety of weighing, packing and materials handling applications. This instrument incorporates the latest 60MHz 32-bit ARM7 micro-controller to handle the different application programs and includes an SD card firmware boot-loader upgrade function.
- Applications:
- Load cell transmitter
- Belt weigher
- Loss-in-weight feeder
- Throughput weigher
- Bag filler
- Batch weigher
- Dynamometer
- Axle weigher
The alphanumeric keypad allows users to enter tag numbers, calibration date, technician's name, and a host of other options. Relays may be configured as on/off, annunciators, fault or pulse counting outputs, with hysteresis and time delays. The 4 function buttons may be configured to toggle displays or to change or accept alarms. This unit incorporates PI control to allow the output to be used directly for load cell control or flow rate control. A useful feature is the simulator, which allows belt speed, analogue output and relay control to be simulated during system commissioning. A 15-point lineariser, min/max display hold, preset tare and auto-zero maintenance are all user selectable and programmable. The many functions, digital inputs and optional methods of setup are fully explained in the comprehensive operating manual.
- Features:
- Rugged, compact, IP65 / NEMA 4 / UL Type 4 housing
- Fully programmable from the front keypad
- 10V, 5V and 3.3V load cell excitation with 6-wire sense
- 6-digit main display with user-selectable function
- 20mm clear high-bright red LED digits
- LCD backlit screen with 4 lines of user-selectable data
- 4 user-selectable short-cut function keys
- Isolated programmable analogue output as standard
- PI control and 15-point lineariser as standard
- Power supply for shaft encoders or sensors included
- USB port included as standard
- 6 user-selectable digital inputs included as standard
- Real-time clock with date included as standard
- 1 solid-state and 5 change-over relays included
- SD card slot for firmware and datalogging
- RS232, RS485, USB or Ethernet interface options
- Optional GPS for vehicle applications
- 90-260V AC/DC or 10-30V DC auxiliary power supply

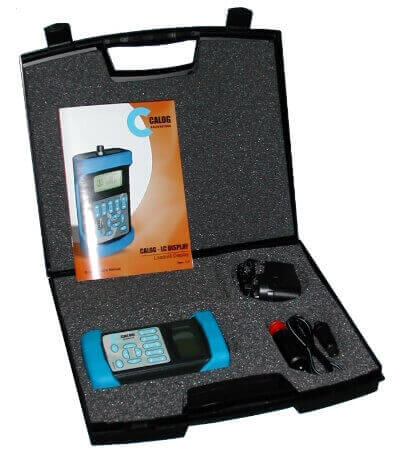

PORTABLE LOAD CELLDISPLAY AND DATALOGGER
Calog LC Display is a hand-held portable load cell and strain gauge indicator with data-logging functions and real-time clock.
The long lasting Li-ion battery pack allows this instrument to be used where measurements need to be taken in varying locations for about 6 hours between re-charges. The Calog load cell display may also be powered from a battery-charger plug-pack, from an external 12 volt battery, or from a vehicle power outlet with the included cable.
The 12mm plug-on locking cable-connector makes for quick and easy interchanging of load cells. Its small size, rugged design, light weight, protective boot and high precision makes this unit ideal for factory, transport, testing, research, therapy, fishing and farm use.
Calog LC Display is a hand-held portable load cell and strain gauge indicator with data-logging functions and real-time clock.
The long lasting Li-ion battery pack allows this instrument to be used where measurements need to be taken in varying locations for about 6 hours between re-charges. The Calog load cell display may also be powered from a battery-charger plug-pack, from an external 12 volt battery, or from a vehicle power outlet with the included cable.
The 12mm plug-on locking cable-connector makes for quick and easy interchanging of load cells. Its small size, rugged design, light weight, protective boot and high precision makes this unit ideal for factory, transport, testing, research, therapy, fishing and farm use.
- Features:
- 2 year warranty, excluding batteries
- Fixed 5 VDC excitation for strain gauges
- Automatic or Manual Zero and Span calibration
- Powers 1 x 350 ohm or 3 x 1000 ohm load cells
- Logs weights with time and date and tag numbers
- 4-pin IP67 M12 A-coding male receptacle connector
- Tare, Peak Hold and Auto Zero maintenance functions
- Small, rugged, handheld with a protective rubber cover
- Display mass, force, strain or torque in engineering units
- Data logging in CSV format to SD card with USB interface
- Graphic display of measured value, mV's and battery status
- Meets CE and C-Tick EMC and EMI and Low Voltage directives
- Lithium Ion built-in long-life battery pack with 'fuel gauge' chip
- Full operating manual and factory calibration certificate included
- User programmable auto-off, audible keypad and display contrast
- Programmable Sensitivity, Range, Decimal point and Engineering Units
- Carry case, boot, battery charger, SD card and cable connector supplied
