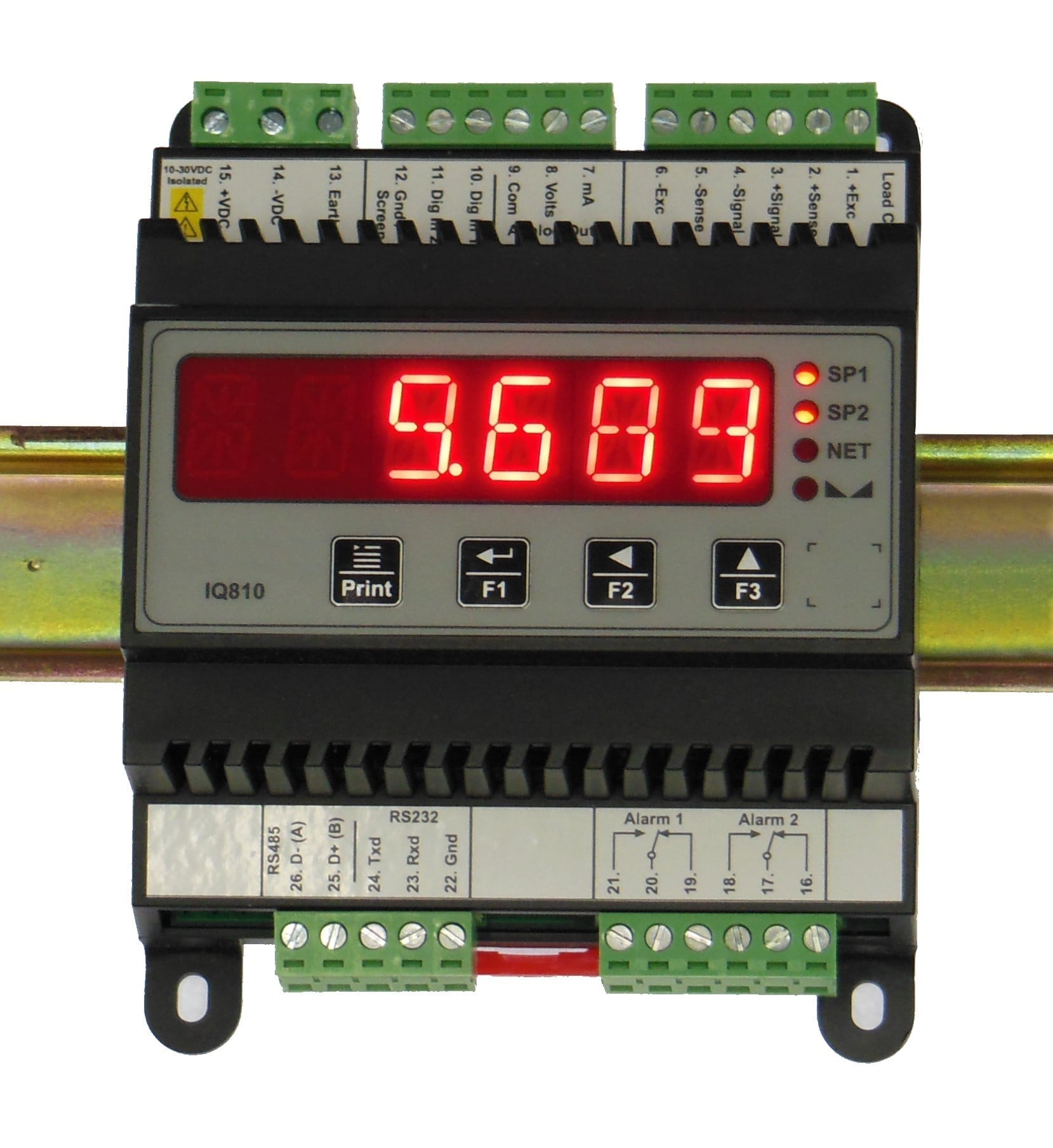

Rail Mount Load Cell Display Transmitter IQ810

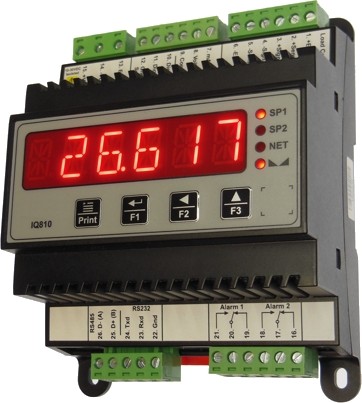

Model IQ810 is a programmable rail-mount and surface-mount precision digital indicator for load cell and strain gauge applications.
With precision front end circuitry for high accuracy and stability, the ratiometric circuitry automatically compensates for temperature drift and excitation voltage variances due to cable loss.
The alphanumeric 6-digit high-bright LED display makes for quick and easy set-up with menu help prompts and error messages. The load cell excitation voltage is 5VDC for use with both 4-wire and 6-wire load cells, powering up to 6 x 350Ω load cells.
With precision front end circuitry for high accuracy and stability, the ratiometric circuitry automatically compensates for temperature drift and excitation voltage variances due to cable loss.
The alphanumeric 6-digit high-bright LED display makes for quick and easy set-up with menu help prompts and error messages. The load cell excitation voltage is 5VDC for use with both 4-wire and 6-wire load cells, powering up to 6 x 350Ω load cells.

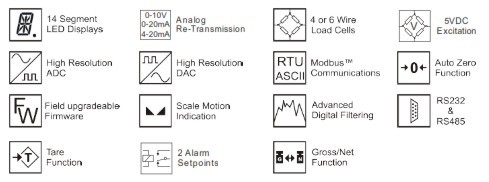

Advanced features include auto-zero tracking; user input linearisation; max/min recording; programmable front push buttons; 2 programmable digital inputs; security menu lockout; motion indication; advanced digital filtering; automatic offset calibration; plus many more to provide an all-in-one precision load cell indicator.
RS232 and RS485 communications is supplied as standard with MODBUS™ RTU and MODBUS™ ASCII protocols. A simple ASCII-out protocol is also provided for serial printing and communicating to large displays.
Model IQ810 also includes 2 programmable mechanical relays and analog retransmission for generating a precise 0/4-20mA or 0-10V analogue output signal.
RS232 and RS485 communications is supplied as standard with MODBUS™ RTU and MODBUS™ ASCII protocols. A simple ASCII-out protocol is also provided for serial printing and communicating to large displays.
Model IQ810 also includes 2 programmable mechanical relays and analog retransmission for generating a precise 0/4-20mA or 0-10V analogue output signal.
