Single-ended Beam Load Cells

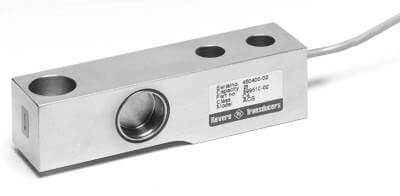

Stainless Steel Beam Load CellModel ACB
- Single ended beam load cell
- Stainless steel, low profile
- Hermetically sealed, IP66 and IP68
- 1000 ohm bridge impedance
- For platform scales, overhead scales and process weighing
- Optional mounting feet and tank mount sets available
- Optional ATEX intrinsic safety versions available
- OIML R60 CC, C3 and C6
- 500, 1000, 2000 and 5000 kg capacities
Stainless Steel Beam Load Cell
Model BM8H
- Stainless steel shear beam load cell
- Welded sealed to IP68
- For platform, track and hopper scales and general weighing
- OIML R60 accuracy class C3
- Various assembly accessories available
- Capacities 500kg to 5t and 1 Klb to 10 Klb
- Stainless Steel Beam Load Cell
- Model BM11
- Stainless steel single point beam load cell
- Fully welded sealed to IP68
- For belt weighers, hopper scales and general weighing
- OIML R60 accuracy class C3
- Capacities 20kg to 500kg
.jpg "HM8C load cell")
Nickel-plated Beam Load CellModel HM8C
- Nickel-plated alloy steel shear beam load cell
- Welded sealed to IP68
- For floor scales, hopper scales and general weighing
- OIML R60 accuracy class C3
- Various assembly accessories available
- Capacities from 500kg to 10t

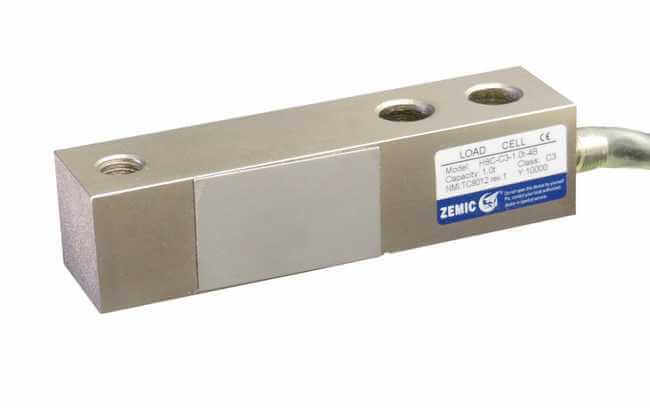

- Nickel-plated Beam Load Cell
- Model H8C
- Nickel-plated alloy steel shear beam load cell
- Adhesive sealed to IP67
- For floor scales, hopper scales and general weighing
- OIML R60 accuracy class C3
- Various assembly accessories available
- Metric capacities 500kg to 10t
- Imperial capacities 1 Klb to 20 Klb

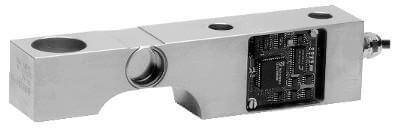

- Digital Stainless Beam
- Model SBC
- Stainless steel shear beam load cell
- Hermetically sealed IP66 with IP68 cable entry
- For platform, pallet and overhead track scales
- 240,000 counts resolution, up to R60 6000 intervals
- OIML R60 accuracy classes C1, C2, C3, C4, C5 and C6
- Capacities from 500kg to 5t
- Stainless Steel Beam Load Cell

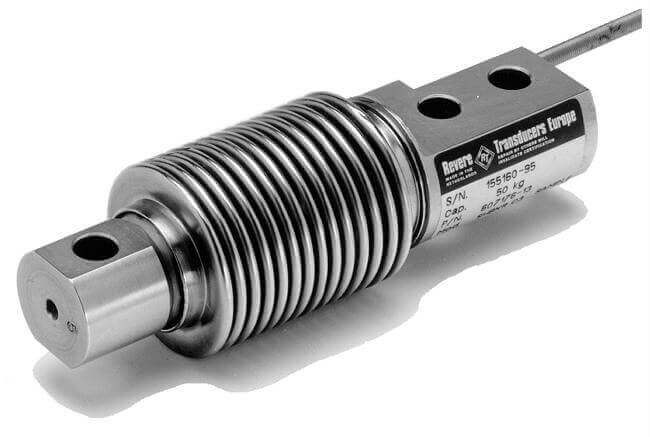

- Model SHBxR
- Single ended load beam
- Stainless steel, fully welded
- Hermetically sealed, IP66
- Waterblock cable entry, IP68
- For platform and belt scales, packing machines and process weighing
- Optional 6-wire cable version available for sense
- Optional self-aligning mounting hardware available
- Optional ATEX intrinsic safety versions available
- OIML R60 CC, C3 and C4 / NTEP IIIL
- 5, 10, 20, 30, 50, 100, 200, 350 and 500 kg capacities

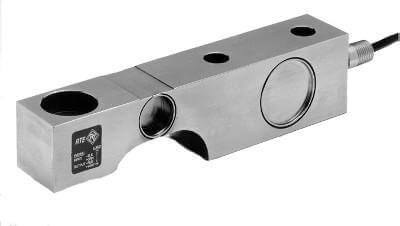

- Stainless Steel Beam
- Model SSB
- Single ended beam load cell
- Stainless steel, fully welded
- Hermetically sealed, IP66
- Waterblock cable entry, IP68
- For platform, belt, pallet and overhead scales and process weighing
- Optional mounting feet and tank mount sets available
- Optional ATEX intrinsic safety versions available
- OIML R60 CC, C3 and C6 / NTEPIIIL
- 500, 1000, 2000 and 5000 kg capacities

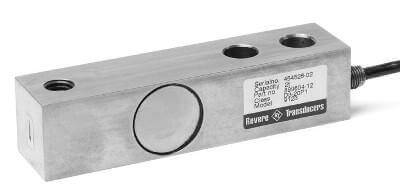

- Nickel or Stainless Steel Beam Load Cell
- Model 5123 and 9123
- Single ended shear beam load cells
- Nickel plated (5132) or stainless steel (9123)
- Low profile, sealed to IP67
- For platforms, hoppers, tanks, bins and process weighing
- Easy installation with threaded mounting hole
- OIML R60 accuracy classes CC, C3 and C4
- Capacities from 500 to 5000kg and 1K to 10K lbs

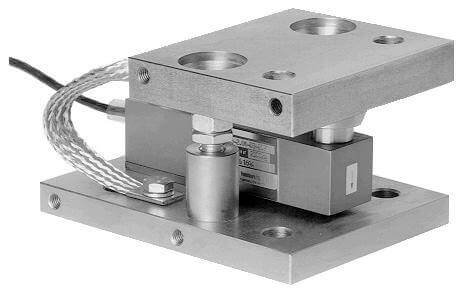

.jpg "Load cell mounting set")

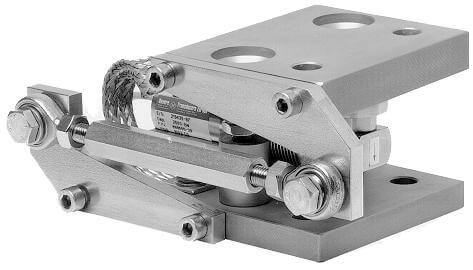

Stainless Steel Beam Load CellModel 9102
- Single ended beam load cell
- Stainless steel, low profile
- Hermetically sealed, IP66
- Waterblock cable entry, IP68
- For platforms and overhead scales and process weighing
- OIML R60 C3 and C5 / NTEP III
- Capacities from 200 to 2500 lbs
