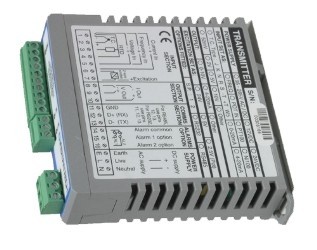

UNIVERSAL PROCESS TRANSMITTER

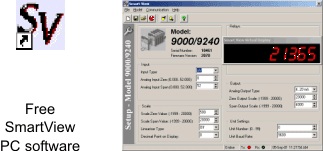

Model 9000 is a miniature space saving 92 x 92 x 26 mm DIN rail mount Universal Programmable Transmitter. Configuration and field calibration is done via a notebook computer or desktop PC using free user-friendly software available from our website.
This transmitter offers complete 3-way isolation between power supply, input and output. The inputs are programmable to accept thermocouple types J, K, N, R, S, T and W5, RTD types PT100 or Ni100, mV up to 52mV, 0-20mA / 4-20mA inputs, volt inputs up to 10V, potentiometer inputs, and frequency inputs from NPN / PNP proximity switches. Integral 2-wire transmitter power is supplied as standard with the unit, as well as a precision reference for potentiometer inputs. This instrument meets CE and C-Tick EMC and EMI and Low Voltage directives. The analogue output is programmable for 0-20mA / 4-20mA or 0-10V output. RS232 communications is standard with DIGIbus protocol.
Model 9000 is a miniature space saving 92 x 92 x 26 mm DIN rail mount Universal Programmable Transmitter. Configuration and field calibration is done via a notebook computer or desktop PC using free user-friendly software available from our website.
This transmitter offers complete 3-way isolation between power supply, input and output. The inputs are programmable to accept thermocouple types J, K, N, R, S, T and W5, RTD types PT100 or Ni100, mV up to 52mV, 0-20mA / 4-20mA inputs, volt inputs up to 10V, potentiometer inputs, and frequency inputs from NPN / PNP proximity switches. Integral 2-wire transmitter power is supplied as standard with the unit, as well as a precision reference for potentiometer inputs. This instrument meets CE and C-Tick EMC and EMI and Low Voltage directives. The analogue output is programmable for 0-20mA / 4-20mA or 0-10V output. RS232 communications is standard with DIGIbus protocol.
- Features:
- DIN rail mount 92 x 92 x 26 mm enclosure
- Fully programmable via a notebook or desktop PC
- Low cost - high performance design
- Complete 3-way isolation between power, input and output
- Input types J, K, N, R, S, T, W5, PT100, Ni100, mV, 0/4-20mA, 0-10V, frequency, potentiometer
- 0-10V, 0-20mA or 4-20mA analogue output with programmable zero and span
- RS232 serial communications standard with DIGIbus protocol
- Optional RS485 communications
- Wide ranging 95 to 265V auxiliary supply
- Options:
- 3001-P: Two alarms setpoints with solid-state relays
- 3002: RS485 communications capability
- 3004-P: One alarm setpoint with solid-state relay

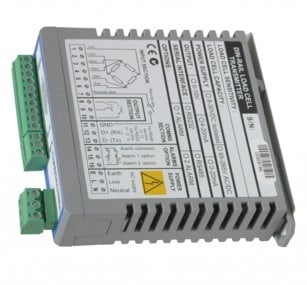

STRAIN GAUGE TRANSMITTERModel 9004 is a miniature space saving 92 x 92 x 26 mm DIN rail mount Programmable Load Cell Transmitter. Configuration and field calibration is done via a computer using free user-friendly software available from this website, linked below.
This transmitter offers complete 3-way isolation between power supply, input and output and is designed for mV inputs from load cells, strain gauges and strain gauge pressure transmitters. The stable bridge excitation voltage powers up to 4 load cells and includes sense feedback to compensate for line variations. The precision instrumentation op-amp front end circuit ensures high accuracy and stability. The adjustable digital damping feature allows for a stable output in noisy systems. This instrument meets CE and C-Tick EMC and EMI and Low Voltage directives. The analogue output is programmable for milliamps or volts. RS232 communications is standard with DIGIbus protocol.
This transmitter offers complete 3-way isolation between power supply, input and output and is designed for mV inputs from load cells, strain gauges and strain gauge pressure transmitters. The stable bridge excitation voltage powers up to 4 load cells and includes sense feedback to compensate for line variations. The precision instrumentation op-amp front end circuit ensures high accuracy and stability. The adjustable digital damping feature allows for a stable output in noisy systems. This instrument meets CE and C-Tick EMC and EMI and Low Voltage directives. The analogue output is programmable for milliamps or volts. RS232 communications is standard with DIGIbus protocol.
- Features:
- DIN rail mount 92 x 92 x 26 mm enclosure
- Fully programmable via a notebook or desktop PC
- Low cost - high performance design
- Complete 3-way isolation between power, input and output
- Input levels user-programmable up to 3.00mV/V
- Built-in user-programmable 16-point lineariser
- 0-5, 1-5, 0-10V, 0-20mA or 4-20mA programmable analogue output
- RS232 serial communications standard with DIGIbus protocol
- Optional RS485 communications
- Wide ranging 95 to 265V auxiliary supply
- Options:
- 3001-P: Two alarms setpoints with solid-state relays
- 3002: RS485 communications capability
- 3004-P: One alarm setpoint with solid-state relay
AC AMPS / VOLTS TRANSMITTER
Model 9006 is a miniature space saving 92 x 92 x 26mm DIN rail mount AC Voltage or Current programmable transmitter. The unit accepts voltages up to 500V and currents up to 5A, and converts them to an isolated 0-10V, 0-20mA or 4-20mA output. This transmitter offers complete 3-way isolation between power supply, input and output. The input amd output ranges are fully user programmable, as is the output type. This instrument meets CE and C-Tick EMC and EMI and Low Voltage directives. The analogue output is programmable for 0-20mA / 4-20mA or 0-10V output. RS232 communications is standard with DIGIbus protocol.
Model 9006 is a miniature space saving 92 x 92 x 26mm DIN rail mount AC Voltage or Current programmable transmitter. The unit accepts voltages up to 500V and currents up to 5A, and converts them to an isolated 0-10V, 0-20mA or 4-20mA output. This transmitter offers complete 3-way isolation between power supply, input and output. The input amd output ranges are fully user programmable, as is the output type. This instrument meets CE and C-Tick EMC and EMI and Low Voltage directives. The analogue output is programmable for 0-20mA / 4-20mA or 0-10V output. RS232 communications is standard with DIGIbus protocol.
- Features:
- DIN rail mount 92 x 92 x 26 mm enclosure
- Fully programmable via a notebook or desktop PC
- Low cost - high performance design
- Complete 3-way isolation between power, input and output
- Voltage inputs up to 500V, current inputs up to 5A
- Heavy duty type input terminals
- 0-10V, 0-20mA or 4-20mA analogue output with programmable zero and span
- RS232 serial communications standard with DIGIbus protocol
- Optional RS485 communications
- Wide ranging 95 to 265 V AC/DC auxiliary supply
- Options:
- 3001-P: Two alarms setpoints with solid-state relays
- 3002: RS485 communications capability
- 3004-P: One alarm setpoint with solid-state relay
.jpg "Rail-mount serial ASCII transmitter"){kind=spacer}
SERIAL ASCII TRANSMITTER
Model 9011 is a miniature space saving 92 x 92 x 26 mm DIN rail mount Programmable Transmitter for Serial ASCII input. Configuration and field calibration is done via a notebook computer or desktop PC using our free user-friendly software.
This transmitter offers complete 3-way isolation between power supply, input and output. The input amd output ranges are fully user programmable, as is the output type. This instrument meets CE and C-Tick EMC and EMI and Low Voltage directives. The analogue output is programmable for 0-20mA / 4-20mA or 0-10V output. RS232 communications is standard with DIGIbus protocol.
Model 9011 is a miniature space saving 92 x 92 x 26 mm DIN rail mount Programmable Transmitter for Serial ASCII input. Configuration and field calibration is done via a notebook computer or desktop PC using our free user-friendly software.
This transmitter offers complete 3-way isolation between power supply, input and output. The input amd output ranges are fully user programmable, as is the output type. This instrument meets CE and C-Tick EMC and EMI and Low Voltage directives. The analogue output is programmable for 0-20mA / 4-20mA or 0-10V output. RS232 communications is standard with DIGIbus protocol.
- Features:
- DIN rail mount 92 x 92 x 26 mm enclosure
- Fully programmable via a notebook or desktop PC
- Low cost - high performance design
- Complete 3-way isolation between power, input and output
- Input serial ASCII, RS232 or RS485
- 0-10V, 0-20mA or 4-20mA programmable analogue output
- RS232 serial communications standard with DIGIbus protocol
- Optional RS485 communications
- Wide ranging 10-30 VDC or 95-265 V AC/DC auxiliary supply
- Options:
- 3001-P: Two alarms setpoints with solid-state relays
- 3002: RS485 communications capability
- 3004-P: One alarm setpoint with solid-state relay
UNIVERSAL TRANSMITTER
Model 9240 is a miniature space saving 92 x 92 x 26 mm DIN rail mount Universal Programmable Transmitter. Configuration and field calibration is done via a notebook computer or desktop PC using our free user-friendly software.
This transmitter offers complete 3-way isolation between power supply, input and output. The inputs are programmable to accept thermocouple types J, K, N, R, S, T and W5, RTD types PT100 or Ni100, mV up to 52mV, 0-20mA / 4-20mA inputs, volt inputs up to 10V, potentiometer inputs, and frequency inputs from NPN / PNP proximity switches. Integral 2-wire transmitter power is supplied as standard with the unit, as well as a precision reference for potentiometer inputs. This instrument meets CE and C-Tick EMC and EMI and Low Voltage directives. The analogue output is programmable for 0-20mA / 4-20mA or 0-10V output. RS232 communications is standard with DIGIbus protocol.
Model 9240 is a miniature space saving 92 x 92 x 26 mm DIN rail mount Universal Programmable Transmitter. Configuration and field calibration is done via a notebook computer or desktop PC using our free user-friendly software.
This transmitter offers complete 3-way isolation between power supply, input and output. The inputs are programmable to accept thermocouple types J, K, N, R, S, T and W5, RTD types PT100 or Ni100, mV up to 52mV, 0-20mA / 4-20mA inputs, volt inputs up to 10V, potentiometer inputs, and frequency inputs from NPN / PNP proximity switches. Integral 2-wire transmitter power is supplied as standard with the unit, as well as a precision reference for potentiometer inputs. This instrument meets CE and C-Tick EMC and EMI and Low Voltage directives. The analogue output is programmable for 0-20mA / 4-20mA or 0-10V output. RS232 communications is standard with DIGIbus protocol.
- Features:
- DIN rail mount 92 x 92 x 26 mm enclosure
- Fully programmable via a notebook or desktop PC
- Low cost - high performance design
- Complete 3-way isolation between power, input and output
- Input types J, K, N, R, S, T, W5, PT100, Ni100, mV, 0/4-20mA, 0-10V, frequency, potentiometer
- 0-10V, 0-20mA or 4-20mA analogue output with programmable zero and span
- RS232 serial communications standard with DIGIbus protocol
- Optional RS485 communications
- Wide ranging 10 to 30 VDC auxiliary supply
- Options:
- 3001-P: Two alarms setpoints with solid-state relays
- 3002: RS485 communications capability
- 3004-P: One alarm setpoint with solid-state relay
.jpg "9240 universal programmable transmitter"){kind=spacer}
STRAIN GAUGE TRANSMITTER
Model 9244 is a miniature space saving 92 x 92 x 26 mm DIN rail mount Programmable Load Cell Transmitter. Configuration and field calibration is done via a computer using the free user-friendly software available below.
This transmitter offers complete 3-way isolation between power supply, input and output and is designed for mV inputs from load cells, strain gauges and strain gauge pressure transmitters. The stable bridge excitation voltage powers up to 4 load cells and includes sense feedback to compensate for line variations. The precision instrumentation op-amp front end circuit ensures high accuracy and stability. The adjustable digital damping feature allows for a stable output in noisy systems. This instrument meets CE and C-Tick EMC and EMI and Low Voltage directives. The analogue output is programmable for milliamps or volts. RS232 communications is standard with DIGIbus protocol.
Model 9244 is a miniature space saving 92 x 92 x 26 mm DIN rail mount Programmable Load Cell Transmitter. Configuration and field calibration is done via a computer using the free user-friendly software available below.
This transmitter offers complete 3-way isolation between power supply, input and output and is designed for mV inputs from load cells, strain gauges and strain gauge pressure transmitters. The stable bridge excitation voltage powers up to 4 load cells and includes sense feedback to compensate for line variations. The precision instrumentation op-amp front end circuit ensures high accuracy and stability. The adjustable digital damping feature allows for a stable output in noisy systems. This instrument meets CE and C-Tick EMC and EMI and Low Voltage directives. The analogue output is programmable for milliamps or volts. RS232 communications is standard with DIGIbus protocol.
- Features:
- DIN rail mount 92 x 92 x 26 mm enclosure
- Fully programmable via a notebook or desktop PC
- Low cost - high performance design
- Complete 3-way isolation between power, input and output
- Input levels user-programmable up to 3.00mV/V
- Built-in user-programmable 16-point lineariser
- 0-5, 1-5, 0-10V, 0-20mA or 4-20mA programmable analogue output
- RS232 serial communications standard with DIGIbus protocol
- Optional RS485 communications
- Wide ranging 10 to 30VDC auxiliary supply
- Options:
- 3001-P: Two alarms setpoints with solid-state relays
- 3002: RS485 communications capability
- 3004-P: One alarm setpoint with solid-state relay
